Ground conveyor,Ground conveying equipment
Description
The ground conveyor is a common continuous conveying device with the advantages of operation, simple maintenance and long service life.
Classification table
The types of ground conveyors produced by our factory mainly include:

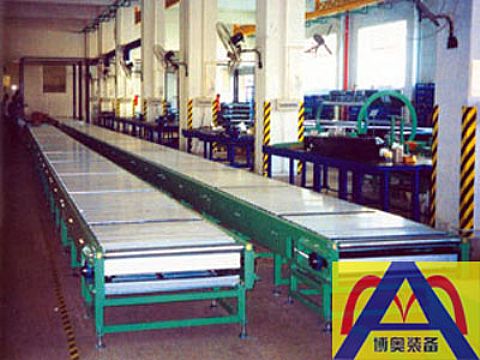

(1) Plate conveyor: The plate conveyor mainly consists of chain plate device, driving device, rail frame, track, head wheel assembly and tail wheel assembly. It has the advantages of small footprint, safe operation and reliable use. This product has been widely used in some washing machines, refrigerators, air conditioners and automobile assembly, engineering machinery assembly and other industries.
Classified by section | Classified by load size | Classified by chain pitch | Classified by platen width | Classified by type of trolley wheel | Classified by ear plate |
Single chain single channel | Light-weight type | 200mm | 300 | Rolling type with rolling bearings | Single ear plate type |
Single chain double channel | Heavy type | 250mm | 600 | Sliding type with oil-free lubricated bearings | Double ear plate type |
Double chain single channel | Extra heavy type | 400mm | 1000 | Bearingless sliding | Earless plate type |
Double chain double channel |
|
| 2000 |
|
|
|
|
| 3000 |
|
|
(2) Roller conveyor:
Roller conveyors are conveyor equipment that is widely used in various industries. The device is simple in construction and easy to maintain and use. It is suitable for continuous conveying and accumulation of finished articles. With various auxiliary special machines, different process requirements (flip, transfer, branching, confluence, steering) of the workpiece on the production line can be completed.
| Main Technical Parameters | ||||
Load | Roller diameter(mm) | Station load(kg) | Belt width | Roller pitch |
Light-weight type | 42 | 50 | 400 | 75 |
Medium type | 60 | 100 | 600 | 130 |
Heavy type | 60 | 500 | 800 | 150 |
Extra heavy type | 76 | 1000 | 1200 | 200 |
(3) Ground push conveyor: Ground push conveyor is a conveying device that installs the whole machine (drive, tension, track, chain) under the ground. The transported workpiece is placed on the craft (carrying) trolley, and the craft trolley is pushed by the pusher or pusher trolley mounted on the traction chain to operate on the ground (or the track laid along the ground). This kind of conveyor is mostly used in various types of pipelines on the ground multi-station, to complete various process requirements (such as pre-treatment, painting, assembly, debugging, inspection, etc.) of the workpiece during operation.
Main Technical Parameters | ||||
Bicycle carrying capacity(kg) | Minimum horizontal radius of gyration(mm) | Running speed(m/min) | Chain pitchmm | Power(KW) |
500 | 1000 | 0.3-10 | 100 | 1.1-5.5 |
(4) Sliding conveyor: The sliding conveyor is a storage and transportation equipment on the production line of welding, painting and final assembly in the automotive industry, which has been widely used in recent years. The roller bed fixed on the ground serves as a power source, and relies on the friction force to move the carcass placed above it; the workpiece to be transported is placed on the carcass. The “flexible transfer” during the transportation and transfer of the workpiece is realized. It eliminates the synchronous control problem that must be solved between other chain drive ground conveyors, and improves the reliability of the system work. The machine can realize special functions such as line translation, right angle turn, vertical lift, horizontal rotation and storage of the workpiece to be transported. Flexible wiring and strong production adaptability. The main equipment of the system: power roller, electric travel machine, rotary table, lift, unpowered roller bed, chain shift machine, single (double) chain conveyor. Among them, the chain conveyor adopts t=160 plate chain, and the ultimate tensile load is 160kN.
Main Technical Parameters | ||||
Load capacity of pry body(kg) | Pry body running speed(m/min) | Rotation speed(r/min) | Transverse speed(m/min) | Pry height |
200-1000 | 0.5-12 | 0.5-2 | 5-20 | － |
